Power steering hoses

Contact Us
Product description

SAE  J188 Power Steering Hose

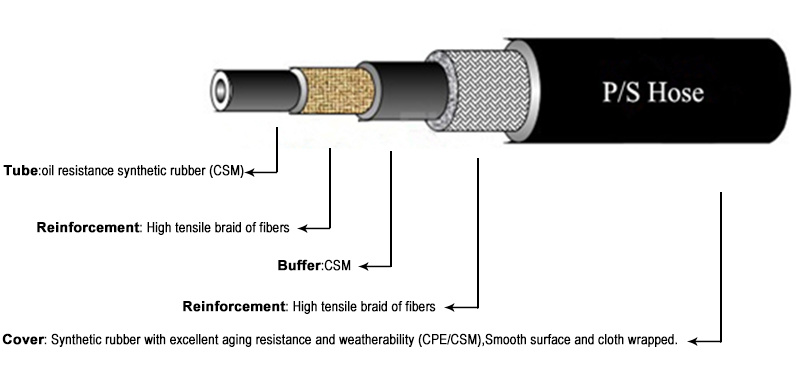

  Tube:oil resistance synthetic rubber (CSM)
  Reinforcement: High tensile braid of fibers
  Reinforcement: High tensile braid of fibers
  Cover: Synthetic rubber with excellent aging resistance
  and weatherability (CPE/CSM),Smooth surface and cloth wrapped.

Temparature:-40°C~+125°C (max 135°C)

Standards:SAE J188, MS263-53

Features: The hose can bear high pressure with good performance of pulse resistance, oil  resistance, low turbidity flexing resistance, and hot air resistance. And it has the performance of anti-burst, high tensile strength, and the change rate of the tube length is small after being pressed, and it can provide reliable, safe power steering performance in any circumstances, to ensure the vehicle operate easily and safely.

Applications:It is used to the vehicles of the power steering system and pressure transfer in the power steering assembly.


Specification I.D. O.D. Wall Thickness Burst Pressure Working Pressure
inch  mm   mm   mm   Mpa   Mpa
3/8'' 9.5±0.3 20±0.5 5.1 >42 10.3
3/8'' 9.5±0.3 18.5±0.5 4.5 >42 10.3

Note: Above Specification Just for your reference. We can produce the OEM Size for you.
